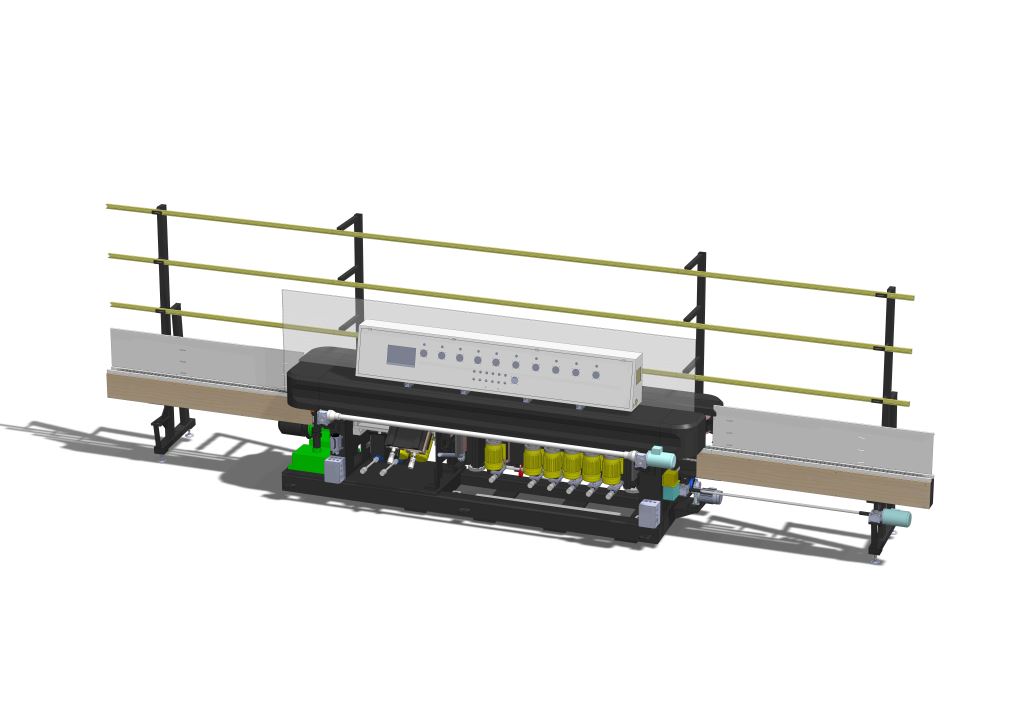

YC-150BV Bearing Type 45° Variable Edging Machine

YC-150BV Bearing Type 45° Variable Edging Machine is suitable for flat glass edging and polishing.
Unique design for angle variable can edging glass withvariable angle form 0 up to 45°.
The transper type is aluminum alloy structure and non-clearance bearing with double pads which ensures stable transfer and endurance.

It uses felt wheel with Ceria to promote the polishing result and long-life the felt wheel.
Uses split-type electrical box makes YC-150B easy to maintain and reduce the risk of electric shock.
Automatic oiling system can auto-detect and oiling, makes YC-150B more easy to maintain.

YC-150BV uses PLC control system,
it can also choose human machine interface to show the process parameters like glass thickness and machining speed.
Customer can modify or enter them via touchscreen.
It makes the production operation more automative and reduce human depandance.


YC-150BV Bearing Type Straight Line Variable Edging Machine specification (Standard)

Machining Speed	Glass Thickness	Glass Minumum	Variable Angle	Power
0.5M-4M/min	3-20mm	Edge：60*60mm Variable angle：100*100mm	0°-45°	21.5KW

The specification of YC-150BV can be customerized.
